Processing Large Files in C

Mike Peters, 10-03-2008
Imagine this scenario -

You are faced with the task of writing a parser that will be capable of handling files of unlimited size. Every record in the file has a varying length. You cannot read the entire file into memory and you cannot use fgets() or fgetcsv() type functions to read records one at a time.

As part of this post I will present a simple, yet highly effective, algorithm that will enable you to process files of unlimited size at ease. We use this extensively whenever Importing or Parsing files.

The key principle is using a single fixed-size read-buffer along with a left-over-buffer.

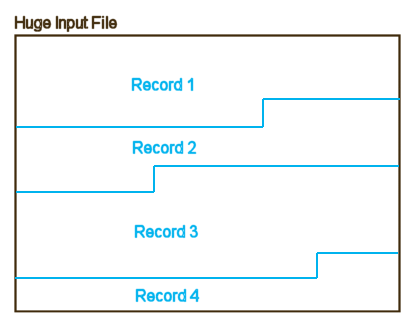

Before we jump into the code, let's review the data layout of a typical huge input file:


Notice how every record has a different size in the huge input file.

The most efficient method to handle such a file is as follows:

1. Read as many bytes as our read-buffer can store from huge input file

2. Pass read-buffer to our ProcessData() function. The ProcessData function will scan through the passed read-buffer, search for end-of-record separator (end of line, semicolon or whatever end-of-record separator you use) and process the records.

3. Upon completion, ProcessData() will have a left-over buffer it cannot process. A beginning of a new record with no end-of-record separator (see diagram below). ProcessData() returns that left-over buffer to the calling function

4. Copy left-over-buffer to the beginning of our read-buffer and read size_of_buffer - size_of_leftover new bytes from the file

5. Goto 2

The read-buffer should be big enough to hold a record of the maximum allowed record-size.

For example, let's assume the read-buffer can hold all of records 1 and 2. Our algorithm will iterate twice as follows:

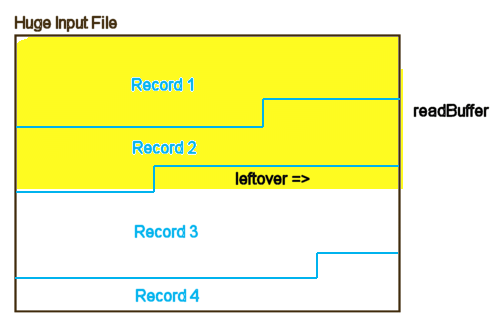

Step 1:

Read as much as possible into read-buffer and pass to ProcessData function:


ProcessData will process both Record1 and Record2. It will be unable to process Record3 due to not finding end-of-record separator. As a result ProcessData returns the beginning of Record3 as the left-over buffer.

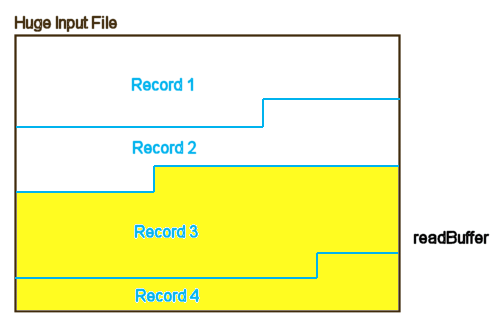

Step 2:

left-over buffer copied to the beginning of the read-buffer.
Read as much as possible into read-buffer and pass to ProcessData function:


ProcessData can now process Record3 and Record4.

-

The code in C that makes it all happen:



#define        MAXLINELENGTH    1024 // Max record size
    #define        BUFSIZE      50000


long            bytesread;

char            buf[BUFSIZE];

int              sizeLeftover=0;

int              bLoopCompleted = 0;

long        pos = 0;


// Open source file

if (!(handle = fopen(Filename,"rb")))
    {

// Bail

return 0;
    }

    do
    {


// Read next block from file and save into buf, right after the
    // "left over" buffer

bytesread = fread(buf+sizeLeftover, 1, sizeof(buf)-1-sizeLeftover, handle);
        if (
bytesread<1)
        {

// Turn on 'loop completed' flag so that we know to exit at the bottom
            // Still need to process any block we currently have in the
            // leftover buffer

bLoopCompleted = 1;

bytesread  = 0;
        }


// Add NULL terminator at the end of our buffer

buf[bytesread+sizeLeftover] = 0;


// Process data - Replace with your function
    //
    // Function should return the position in the file or -1 if failed
    //
    // We are also passing bLoopCompleted to let ProcessData know whether this is
    // the last record (in which case - if no end-of-record separator,
    // use eof and process anyway)

pos = ProcessData(connection, buf, bytesread+sizeLeftover,

bLoopCompleted);


// If error occured, bail

if (pos<1
        {

bLoopCompleted = 1;

pos      = 0;
        }


// Set Left over buffer size to
    //
    //  * The remaining unprocessed buffer that was not processed
    //  by ProcessData (because it couldn't find end-of-line)
    //
    // For protection if the remaining unprocessed buffer is too big
    // to leave sufficient room for a new line (MAXLINELENGTH), cap it
    // at maximumsize - MAXLINELENGTH

sizeLeftover = mymin(bytesread+sizeLeftover-pos, sizeof(buf)-MAXLINELENGTH);

// Extra protection - should never happen but you can never be too safe

if (sizeLeftover<1) sizeLeftover=0;


// If we have a leftover unprocessed buffer, move it to the beginning of
    // read buffer so that when reading the next block, it will connect to the
    // current leftover and together complete a full readable line

if (pos!=0 && sizeLeftover!=0)

memmove(buf, buf+pos, sizeLeftover);

    } while(!
bLoopCompleted);


// Close file

fclose(handle);

James, 10-28-2017
Nice work. Unsure what the connection parameter in the ProcessData function is expecting.
